Post Extraction
Molar Tooth
Replacement

Implants designed to achieve

high primary stability for

optimised treatment protocols

Post Extraction
Molar Tooth Replacement



Implants designed to achieve high
primary stability for optimised treatment
protocols

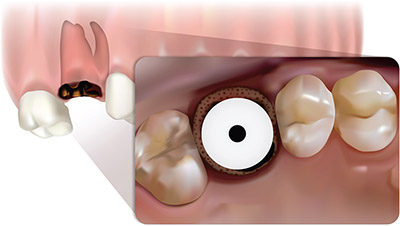

Challenge

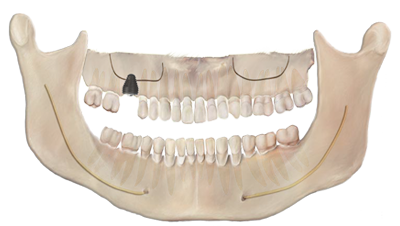

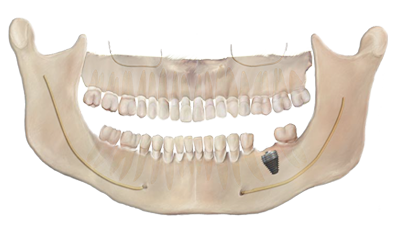

A common need for dental implant treatment is replacement of a failing molar tooth.

The size and shape of the multi-rooted socket is often not suited to the placement of a typical implant, resulting in compromised implant positioning or poor primary stability. This may result in a waiting period of 3-6 months to allow for healing before attempting to place an implant.

The healed site will often present with reduced vertical and horisontal bone height, resulting in the need for augmentation, especially in the Maxilla.

This leads to further lengthening of treatment time with increased cost and complexity.

Challenge

A common need for dental implant treatment is replacement of a failing molar tooth.

The size and shape of the multi-rooted socket is often not suited to the placement of a typical implant, resulting in compromised implant positioning or poor primary stability. This may result in a waiting period of 3-6 months to allow for healing before attempting to place an implant.

The healed site will often present with reduced vertical and horizontal bone height, resulting in the need for augmentation, especially in the Maxilla.

This leads to further lengthening of treatment time with increased cost and complexity.

Solution

The MAX Implant allows immediate placement in molar extraction sockets:

  • Preserving bone and soft tissue.
  • Reduces buccal bone resorption.
  • Limits sinus pneumatisation – longer implant, better prognosis.
  • Faster rehabilitation.
  • Documented minimal bone remodeling.

Solution

The MAX Implant allows immediate placement in molar extraction sockets:

  • Preserving bone and soft tissue.
  • Reduces buccal bone resorption.
  • Limits sinus pneumatization – longer implant, better prognosis.
  • Faster rehabilitation.
  • Documented minimal bone remodeling.

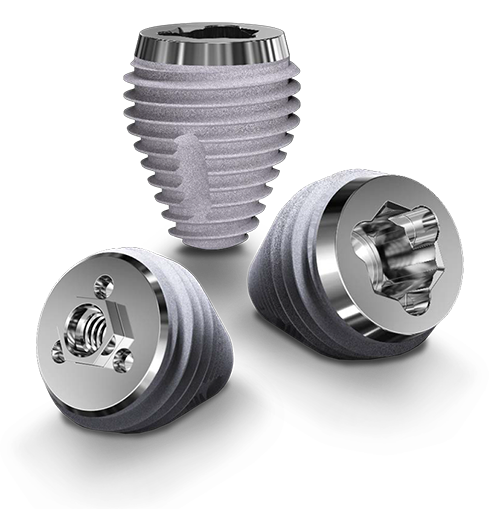

Innovation

The MAX implant advances a molar specific implant design and dedicated surgical protocol to achieve predictable placement into the multi-rooted molar sockets.

The MAX implant features a macro design with a unique thread design and a strong taper to increase the benefit of achieving optimal primary stability where bone to implant contact is low. The flute and thread design provide for self-tapping ability of the implant.

MAXimise the preservation of surrounding bone. MAXimise your treatment solution.

Innovation

The MAX implant advances a molar specific implant design and dedicated surgical protocol to achieve predictable placement into the multi-rooted molar sockets.

The MAX implant features a macro design with a unique thread design and a strong taper to increase the benefit of achieving optimal primary stability where bone to implant contact is low. The flute and thread design provide for self-tapping ability of the implant.

MAX-imise the preservation of surrounding bone. MAX-imise your treatment solution.

Technical Facts
  • Available in:
    • Diameters: 6mm, 7mm, 8mm and 9mm diameter (Ø6mm in External Hex MSc only)
    • Lengths: 7mm, 9mm and 11mm
    • Connections: External Hex, Internal Hex, TRI-NEX® and Internal Octagon
  • Enhanced SInergy surface
  • Greater degree of taper
Surgical Benefits
  • Fits multi-rooted molar socket and allows for immediate placement following extraction
  • Maximizes bone preservation
  • Minimizes need for bone grafting
  • Avoids adjacent tooth roots
  • Reduces treatment time
  • Ability to use standard surgical protocol and instrumentation with minimal additions

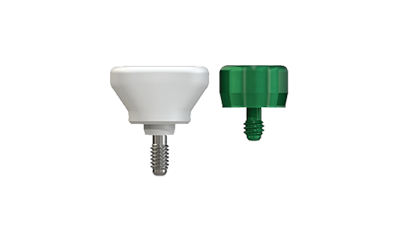

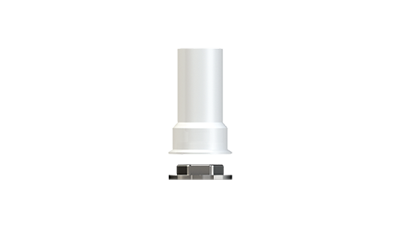

Prosthetic Benefits
  • Increases patient acceptance
  • Ability to use compatible prosthetic components by “platform switching”
  • Reduces treatment time
Technical Facts
  • Available in:
    • Diameters: 6mm, 7mm, 8mm and 9mm diameter (Ø6mm in External Hex MSc only)
    • Lengths: 7mm, 9mm and 11mm
    • Connections: External Hex, Internal Hex, TRI-NEX® and Internal Octagon
  • Enhanced SInergy surface
  • Greater degree of taper
Surgical Benefits
  • Fits multi-rooted molar socket and allows for immediate placement following extraction
  • Maximizes bone preservation
  • Minimizes need for bone grafting
  • Avoids adjacent tooth roots
  • Reduces treatment time
  • Ability to use standard surgical protocol and instrumentation with minimal additions
Prosthetic Benefits
  • Increases patient acceptance
  • Ability to use compatible prosthetic components by “platform switching”
  • Reduces treatment time
Instructions For Use (IFU)
Research Documents
Videos and Animations
Southern Implants
MAX Implant
MAX Implant Key Features When and Why to Use a Wide-body Implant: Dr Andrew Ackermann
MAX Implants in the Mandible: Dr Andrew Ackermann Post Extraction Molar Replacement with MAX Implants: Dr. Mark Steinberg Post Extraction Molar Replacement with MAX Implants: Dr. Robert Blackwell
References

Atieh MA, Alsabeeha NHM, Duncan WJ, de Silva RK, Cullinan MP Schwass D, Payne AGT. Immediate single implant restorations in mandibular molar extraction sockets: a controlled clinical trial. Clin. Oral Impl. Res. 24, 2013, 484-496 doi: 10.1111/j.1600-0501.2011.02415.x.

Atieh MA, Payne AGT, Duncan WJ, de Silva RK, Cullinan, MP. Immediate Placement or Immediate Restoration/Loading of Single Implants for Molar Tootth Replacement: A Systematic Review and Meta-analysis. The International Journal of Oral & Maxillofacial Implants. 2010, Volume 25, Number 1, 401-415.

Atieh MA, Alsabeeha NHM, Payne AGT, Schwass DR, Duncan WJ. Insertion torque of immediate wide-diameter implants: A finite analysis. Quintessence Int. 2012;43:e115-e126.

Hattingh AC, De Bruyn H, Ackermann A, Vandeweghw S. Immediate Placement of Ultrawide-Diameter Implants in Molar Sockets: Description of a Recommended Technique. Int J Periodontics Restorative Dent 2018;38:17-23. doi: 10.11607/prd.3433.

Egbert N, Ahuja S, Selecman A, Wicks R. Single tooth restoration in the maxilla with an ultra-wide diameter implant: A clinical report. J Adv Oral Res 2016;7(3):41-45.

Smith RB, Tarnow DP. Classification of Molar Extraction Sites for Immediate Dental Implant Placement: Technical Note. The International Journal of Oral & Maxillofacial Implants. 2013;28:911-916: doi 10.11607/jomi.2627.

Vandeweghe S, Ackermann A, Bronner J, Hattingh A, Tschakaloff A, De Bruyn H. A Retrospective, Multicenter Study on a Novo Wide-Body Implant for Posterior Regions. Clinical Implant Dentistry and Related Research. 2009, 1-12. Doi 10.1111/j.1708-8208.2009.00253.x.

Vandeweghe S, De Bruyn H. A within-implant comparison to evaluate the concept of platform switching. A randomized controlled trial. Eur J Oral Implantol 2012;5(3):253-262.

Vandeweghe S, Hattingh A, Wennerberg A, De Bruyn H. Surgical Protocol and Short-Term Clinical Outcome of Immediate Placement in Molar Extraction Sockets Using a Wide Body Implant.
J Oral Maxillofac Res 2011 (Jul-Sep);2(3):e1.

Vandeweghe S, De Ferrerre R, Tschakaloff A. De Bruyn H. A Wide-Body Implant as an Alternative for Sinus Lift or Bone Grafting. J Oral Maxillofac Surg 2011;69:e67-e74

Instructions For Use (IFU)
Research Documents
Videos and Animations
Southern Implants
MAX Implant
MAX Implant Key Features MAX Benefits of Key Features: Primary Stability
MAX Benefits of Key Features: Platform Shift Enabled MAX Implants in the Mandible: Dr Andrew Ackermann When and Why to Use a Wide-body Implant: Dr Andrew Ackermann
Post Extraction Molar Replacement with MAX Implants: Dr. Mark Steinberg Post Extraction Molar Replacement with MAX Implants: Dr. Robert Blackwell MAX Implants: Surgical Placement
References

Atieh MA, Alsabeeha NHM, Duncan WJ, de Silva RK, Cullinan MP Schwass D, Payne AGT. Immediate single implant restorations in mandibular molar extraction sockets: a controlled clinical trial. Clin. Oral Impl. Res. 24, 2013, 484-496 doi: 10.1111/j.1600-0501.2011.02415.x.

Atieh MA, Payne AGT, Duncan WJ, de Silva RK, Cullinan, MP. Immediate Placement or Immediate Restoration/Loading of Single Implants for Molar Tootth Replacement: A Systematic Review and Meta-analysis. The International Journal of Oral & Maxillofacial Implants. 2010, Volume 25, Number 1, 401-415.

Atieh MA, Alsabeeha NHM, Payne AGT, Schwass DR, Duncan WJ. Insertion torque of immediate wide-diameter implants: A finite analysis. Quintessence Int. 2012;43:e115-e126.

Hattingh AC, De Bruyn H, Ackermann A, Vandeweghw S. Immediate Placement of Ultrawide-Diameter Implants in Molar Sockets: Description of a Recommended Technique. Int J Periodontics Restorative Dent 2018;38:17-23. doi: 10.11607/prd.3433.

Egbert N, Ahuja S, Selecman A, Wicks R. Single tooth restoration in the maxilla with an ultra-wide diameter implant: A clinical report. J Adv Oral Res 2016;7(3):41-45.

Smith RB, Tarnow DP. Classification of Molar Extraction Sites for Immediate Dental Implant Placement: Technical Note. The International Journal of Oral & Maxillofacial Implants. 2013;28:911-916: doi 10.11607/jomi.2627.

Vandeweghe S, Ackermann A, Bronner J, Hattingh A, Tschakaloff A, De Bruyn H. A Retrospective, Multicenter Study on a Novo Wide-Body Implant for Posterior Regions. Clinical Implant Dentistry and Related Research. 2009, 1-12. Doi 10.1111/j.1708-8208.2009.00253.x.

Vandeweghe S, De Bruyn H. A within-implant comparison to evaluate the concept of platform switching. A randomized controlled trial. Eur J Oral Implantol 2012;5(3):253-262.

Vandeweghe S, Hattingh A, Wennerberg A, De Bruyn H. Surgical Protocol and Short-Term Clinical Outcome of Immediate Placement in Molar Extraction Sockets Using a Wide Body Implant.
J Oral Maxillofac Res 2011 (Jul-Sep);2(3):e1.

Vandeweghe S, De Ferrerre R, Tschakaloff A. De Bruyn H. A Wide-Body Implant as an Alternative for Sinus Lift or Bone Grafting. J Oral Maxillofac Surg 2011;69:e67-e74
