Predictable Anterior Aesthetics

Predictable Anterior Aesthetics Solution from Southern Implants
Extract Tooth

Extract



Replace Implant

Place



Restore Implant

Restore



Predictable Anterior Aesthetics Solution

The goal is to achieve clinical predictability combined with successful aesthetic outcomes. Soft tissue thickness and bone anatomy are compounding factors that can affect clinical success and the long-term maintenance of hard and soft tissue surrounding the implant.

The anatomic limitation of the anterior maxilla often results in implants being placed at a labially inclined angle. This necessitates the use of angle correcting or cement-retained abutments that may compromise aesthetic outcomes and create soft tissue complications.

Clinical Considerations

  • Clinical predictability and successful aesthetic outcomes are the goal.
  • Complex biological situations can compromise aesthetic results.
  • There are a few compounding factors that contribute to clinical success and long-term maintenance of hard and soft tissue.
  • How can implant design facilitate the achievement of aesthetic outcomes?

Clinical predictability and successful aesthetic outcomes

Challenge

The anatomic limitations of the anterior maxilla often results in implants being placed at a labially inclined angle. This necessitates the use of angle correcting abutments which compromises aesthetic outcomes and creates possible soft tissue complications.

anatomic limitations of the anterior maxilla

Solution

Aesthetic Benefits

  • More vertical placement of implants & platform shift
  • Adds buccal space to allow under contouring of restorations
  • Less pressure on buccal soft tissue, resulting in increased
    mid-facial soft tissue
  • Screw retained restorations with no need for labially placed
    screw access holes
Predictable Anterior Aesthetics Solution

Surgical Benefits

  • Tapered design allows for optimal placement in available bone
  • Ideal for placement in extraction socket
  • Thread design ideal for good primary stability
  • Leads to cost effective treatment
  • Available in 4 connections

Why It Works

The Co-Axis® Implant will give more mid-facial soft tissue thickness
that will result in better long-term aesthetics and stable bone levels

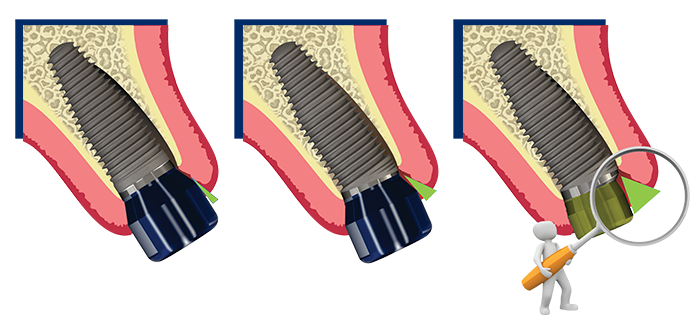

Soft Tissue Thickness

Sub-Crestal angle correction with the Co-Axis implant allows optimal implant placement and screw retained restorations, using standard components  which ultimately results in good aesthetic outcomes at a reduced cost.

NON-Optimal implant

NON-Optimal implant placement require abutment and cemented crown due to unfavorable screw access hole

Sub-Optimal implant placement

Sub-Optimal implant placement with risk of buccal bone perforation or loss of buccal bone to enable screw retained restoration

Palatal implant placement

Palatal implant placement in immediate extraction socket requires an abutment and cemented crown

ub crestal angle correction

Sub crestal angle correction allows for optimal implant placement with screw retained restoration

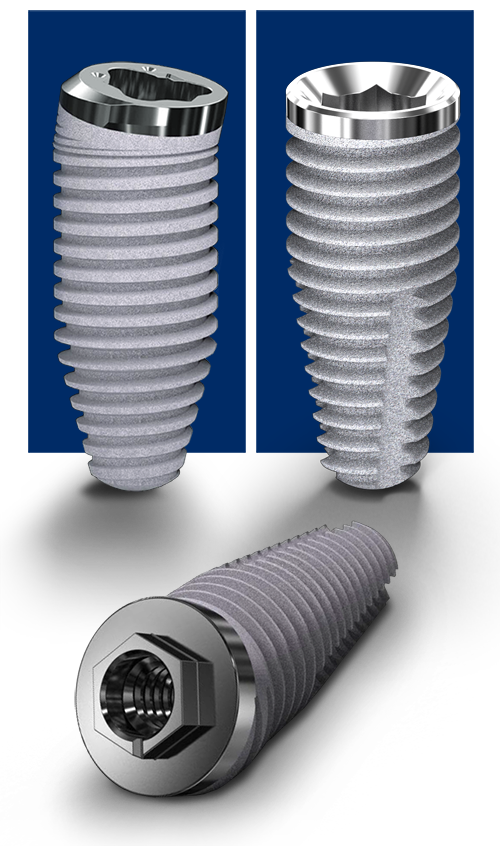

Technical facts on Co-Axis®
  • Innovation unique to Southern Implants, to facilitate sub-crestal angle correction
  • Available from Southern implants in 5 different connections; External hex, TRI-NEX®, Deep Conical, Internal Octagon & Internal hex
  • The only angled-top, tapered, screw-form implant, available in 12°, 24° & 36°
  • Ø3.25mm, 3.5mm, 4.0mm, 4.3mm, 5.0mm & 6.0mm
  • Range from 8 – 24mm lengths
  • Enhanced surface

Be Your Referral’s Hero Through Innovation

Be Your Referral's Hero Through Innovation

Conclusion

Co-Axis® Implant

Surgical Benefits

  • Ideal for immediate placement in extraction sockets
  • Reduces need for onlay bone grafting
  • Increases patient acceptance
  • Improves parallelism in multiple-implant cases
  • Uses standard surgical protocol and instrumentation
  • Satisfied referral base

Prosthetic Benefits

  • Sub-crestal correction allows for better emergence profile
  • Platform switch improves soft tissue “maintenance” ensure to predictable aesthetics
  • Allows for screw-retained restorations
  • Reduces laboratory and component costs

Predictable Anterior Aesthetics

Screw Retained

Soft and hard tissue healing

Implant

Implant

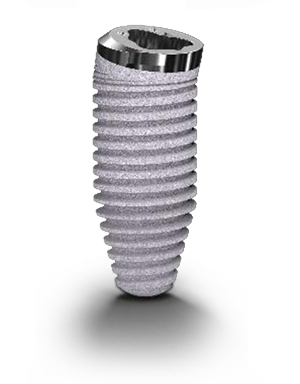

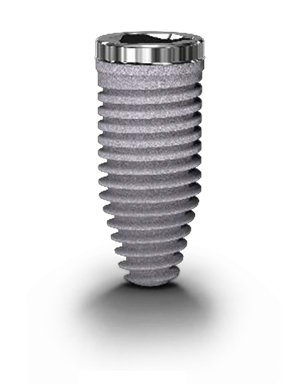

Co-Axis® Implant 12d

Healing Options

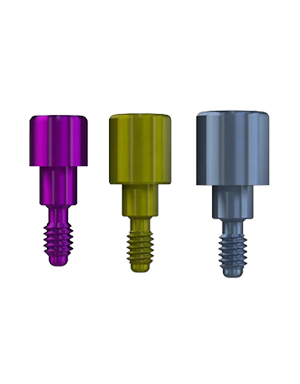

Healing Abutment

Healing Abutments

Impression Options

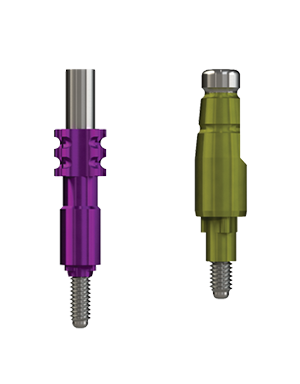

Pick Up or Transfer

Pick Up or Transfer

Abutment Options

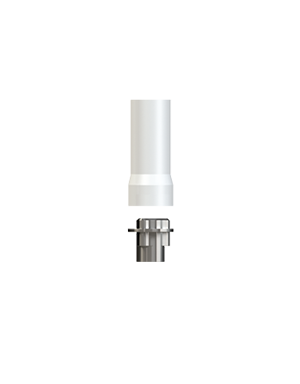

Passive Abutment

Passive Abutment™

Healing Options

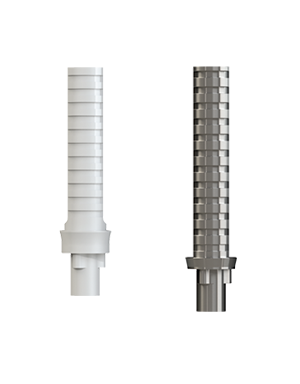

Temporary Cylinder PEEK/Titanium

Temporary Cylinder PEEK/IT

Impression Options

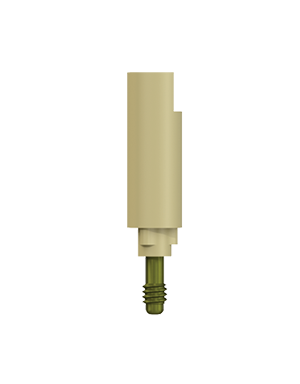

Scanning Flag

Scanning Flag

Abutment Options

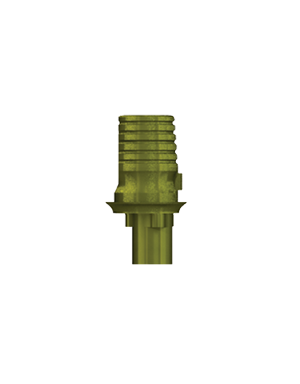

CAD/CAM Abutment

CAD/CAM Abutment

Abutment Option

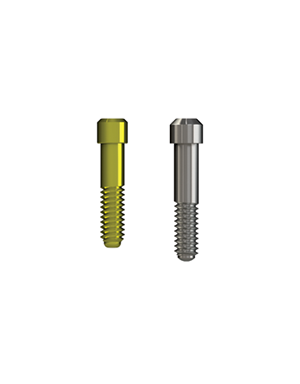

Gold or Titanium Abutment Screw

Gold or Titanium Abutment Screw

Downloadable Documents

For further detailed information about Predictable Anterior Aesthetics, please see the documents made available for your reference.

INVERTA Implants Product Catalogue
Download PDFOptimizing Predictable Anterior Aesthetics with an Innovative Body-Shift™ Implant Design…
Predictable Anterior Aesthetics with the INVERTA® Implant – A Dossier

Download PDFA NEW Implant Designed for Optimizing Aesthetics in Maxillary Anterior Extraction Socket Sites…

Surface Brochure

Download PDFSInergy, the Southern enhanced surface is not a “coating”, it is an abraded rough surface of the most stable of the Titanium Oxides…
